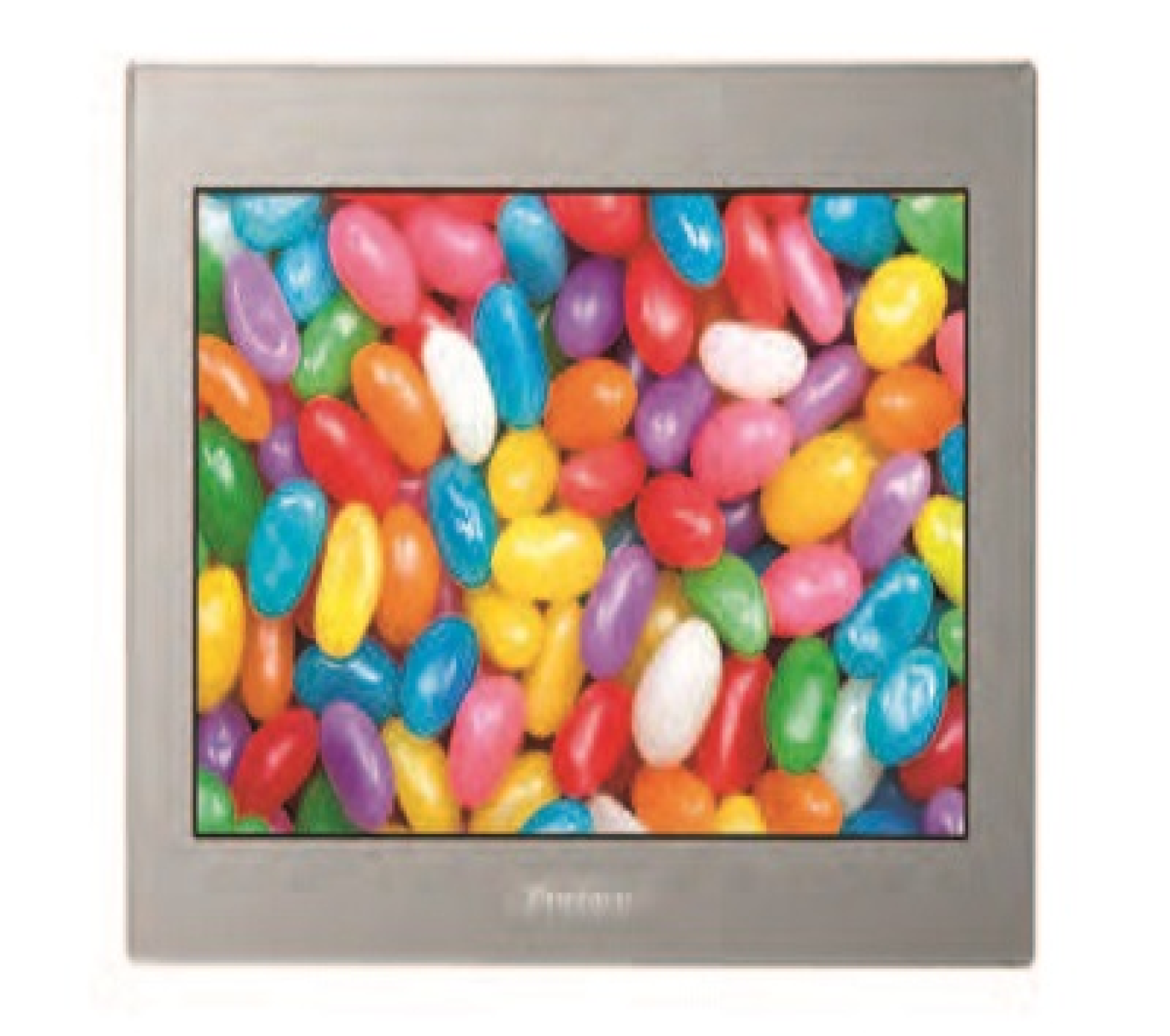

HMI 7.0" Wide, W154.08 x H85.92mm, 16 million colors, 24 VDC.
| Specifications | PFXET6400WAD |
|
Family |
HMI |
| Series | ET6000 Series |
| Size | 7.0" Wide |
| Display type | TFT Color LCD |
| Display size | 7" Wide |
| Resolution Resolution | 800 x 480 pixels (WVGA) |
| Display colors | 16 million colors |
| Backlight | White LED |
| Brightness control | 16 Levels (Adjusted with touch panel or software) |
| Touch panel type | Resistive Film (analog, single-touch) |
| Touch panel resolution | 1,024 x 1,024 |
| Touch panel lifetime | 1,000,000 times or more |
| Rated input voltage | 24 Vdc |
| Application memory | When using GP-Pro EX: Media: FLASH EPROM Screen Area: 32MB User Font Area: 8MB Logic Program Area: 132KB (Equivalent to 15,000 steps) Free Space: None |
| Structure | IP65 |
| External dimensions | W205.5 x H150.5 x D45 mm |
| Panel cut-out dimensions | W190 x H135 mm [W7.48 x H5.31 in.] |
| Weight | 0.8 kg [1.76 lb] or less |
