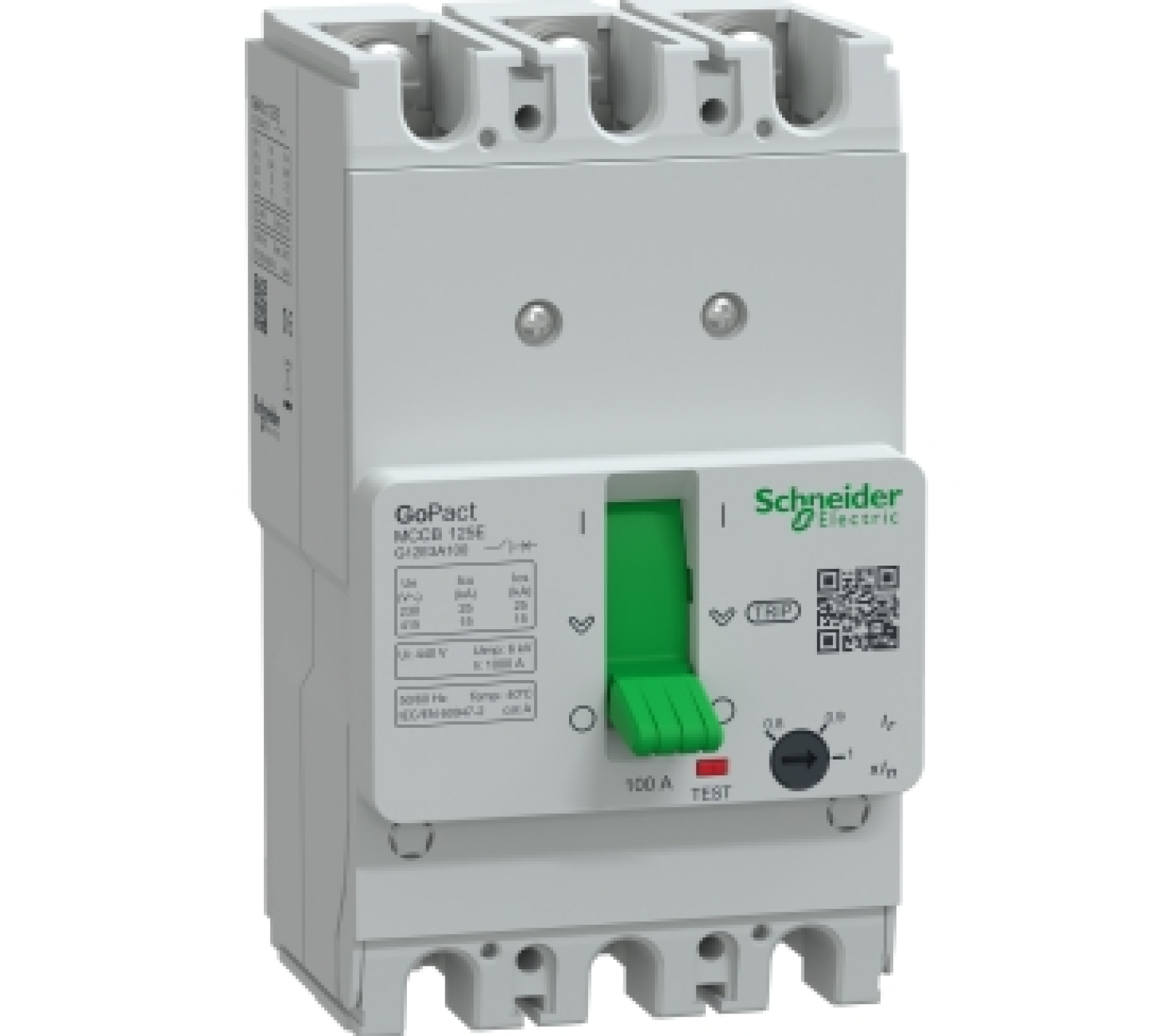

Circuit breaker, GoPact MCCB 125E, 3 Poles, 15kA at 415VAC, 100A rating, TMD trip unit, adjustable thermal protection
| Specifications | ||
| Range | GoPact MCCB | |
| Country of Origin (Estimated) | India | |
| Warranty | 12 months | |
| CO/CQ | Yes (if) | |
| Product name & Device short name | GoPact MCCB 125E | |
| Device application | Distribution | |
| Poles description | 3P /4P | |
| Protected poles description | 3P 3d /4P 3d | |
| [In] rated current | 100 A at 40 °C | |
| Network type | AC /DC | |
| [Ue] rated operational voltage | 415 V AC 50/60 Hz conforming to EN/IEC 60947-2 | |
| Suitability for isolation | Yes conforming to EN/IEC 60947-2 | |
| Trip unit name | TM-D | |
| Trip unit technology | Thermal-magnetic | |
| Trip unit rating | 100 A | |
| Long-time pick-up adjustment type Ir (thermal protection) | Adjustable/Fixed | |
| [Ir] long-time protection pick-up adjustment range | 0.8...1 x In/ 1 x In | |
| [Ui] rated insulation voltage | 440 V AC conforming to EN/IEC 60947-2 | |
| Connection pitch | 25 mm | |
| Breaking capacity [Icu] | 15 kA Icu at 380/415 V AC 50/60 Hz conforming to EN/IEC 60947-2 | |
| [Ics] rated service breaking capacity | 15 kA at 380/415 V AC 50/60 Hz conforming to EN/IEC 60947-2 | |
| Mechanical durability | 30,000 cycles | |
| Electrical durability | 8000 cycles at 415 V In | |
| Protection type | L : for overload protection (thermal) I : for short-circuit protection (magnetic) |
|
| Dimensions (mm) (HxWxD) |
3P /130x75x60 mm 4P/130x100x60 mm |
|
| Net weight (Kg) | 3P/0.7Kg 4P/0.9 Kg |
|
| Door cutout Dimensions (WxH) | 3P/76x46mm 4P/101x46mm |
|
