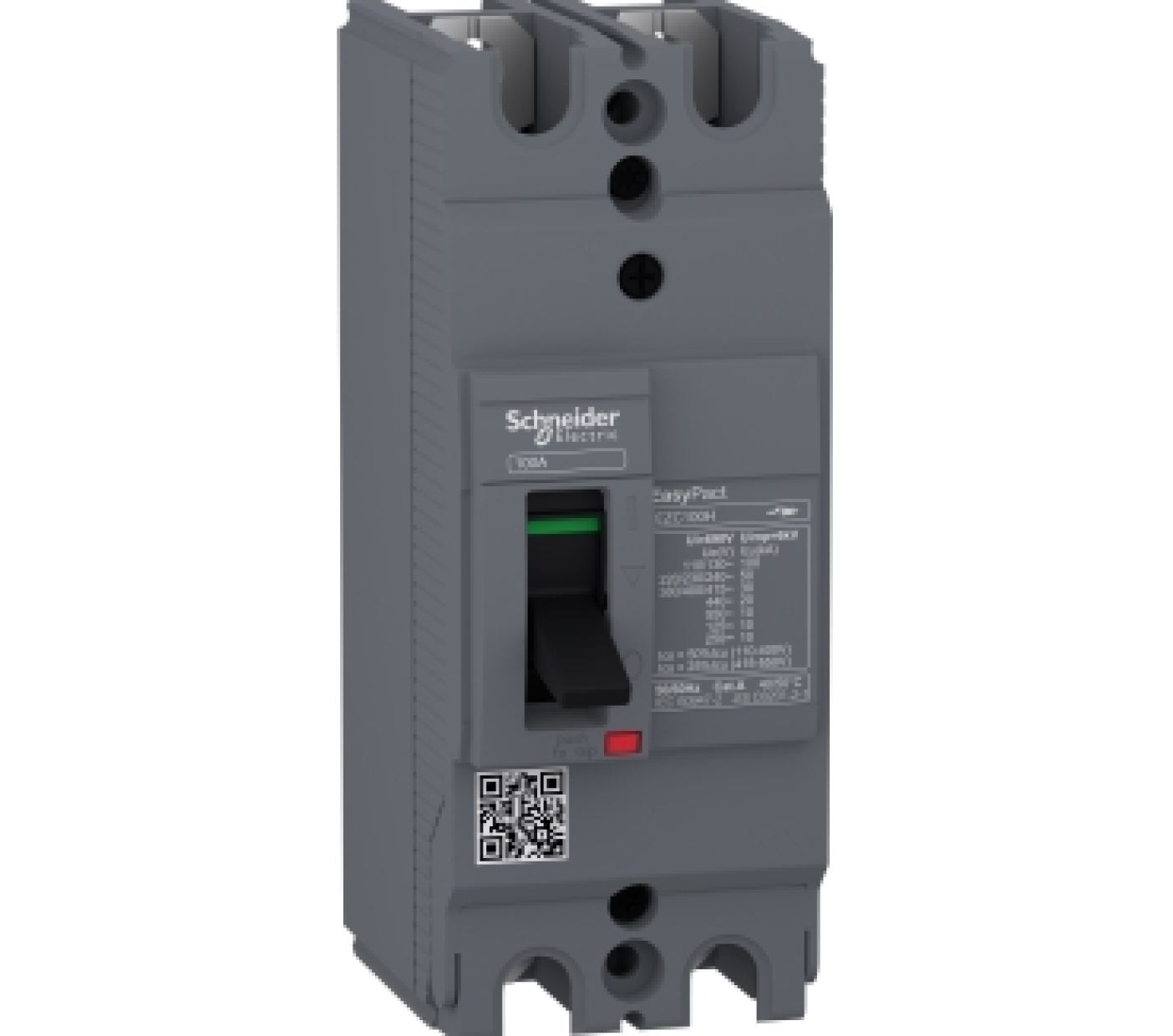

Circuit breaker,EasyPact EZC100H ,TMD, 15A, 2 pole 2d
| Specifications EZC100H2015 | ||
| Range | EasyPact | |
| Country of Origin (Estimated) | Thailand | |
| Warranty | 12 months | |
| CO/CQ | Yes (if) | |
| Product name & Device short name | Easypact EZC100H | |
| Device application | Distribution | |
| Poles description | 1P/2P | |
| Protected poles description | 1P 1d/ 2P 2d | |
| [In] rated current | 15 A at 40 °C | |
| Network type | AC /DC | |
| [Ue] rated operational voltage | 125 V DC conforming to IEC 60947-2 415 V AC 50/60 Hz conforming to IEC 60947-2 |
|
| Suitability for isolation | Yes conforming to IEC 60947-2 | |
| Trip unit name | TM-D | |
| Trip unit technology | Thermal-magnetic | |
| Trip unit rating | 15 A | |
| [Ui] rated insulation voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 | |
| Connection pitch | 25 mm | |
| Breaking capacity [Icu] | 10 kA Icu at 125 V DC 1P conforming to IEC 60947-2 25 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2 50 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2 10 kA Icu at 550 V AC 50/60 Hz conforming to IEC 60947-2 |
|
| [Ics] rated service breaking capacity | 5 kA at 125 V DC conforming to IEC 60947-2 12.5 kA at 220/230/240 V AC 50/60 Hz conforming to IEC 60947-2 |
|
| Mechanical durability | 8500 cycles | |
| Electrical durability | Category A: 1500 cycles 415 V AC 50/60 Hz conforming to IEC 60947-2 | |
| Protection type | Overload protection Short-circuit protection |
|
| Dimensions (mm) (H x W x D) |
1P/130x25x60mm 2P/130x50x60mm |
|
| Net weight (Kg) | 1P/0.28Kg 2P/0.6Kg |
|
| Door cut-out (small) Dimensions (X*Y) |
52x24mm | |
| Door cut-out (large) (X*Y) | 1P/52x24mm 2P/52x47mm |
|
