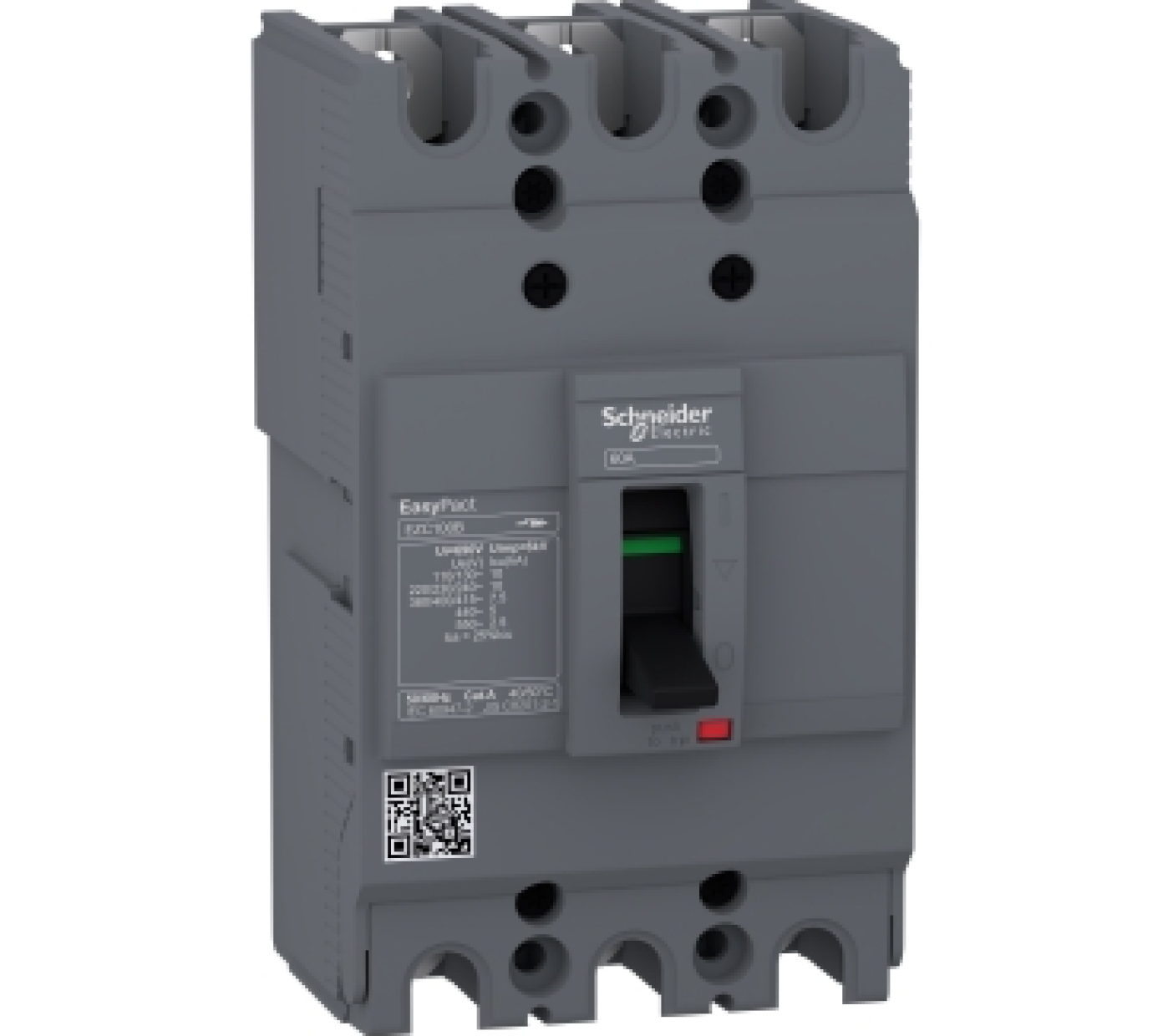

Circuit breaker, EasyPact EZC100B, TMD, 15A, 7.5KA, 3 poles 3d.
| Specifications EZC100B3015 | ||
| Range | EasyPact | |
| Country of Origin (Estimated) | Thailand | |
| Warranty | 12 months | |
| CO/CQ | Yes (if) | |
| Product name & Device short name | Easypact EZC100B | |
| Device application | Distribution | |
| Poles description | 3P /4P | |
| Protected poles description | 3P 3d /4P 3d | |
| [In] rated current | 15 A at 40 °C | |
| Network type | AC /DC | |
| [Ue] rated operational voltage | 550 VAC 50/60 Hz conforming to IEC 60947-2 | |
| Suitability for isolation | Yes conforming to IEC 60947-2 | |
| Trip unit name | TM-D | |
| Trip unit technology | Thermal-magnetic | |
| Trip unit rating | 15 A | |
| [Ui] rated insulation voltage | 690 VAC 50/60 Hz conforming to IEC 60947-2 | |
| Connection pitch | 25 mm | |
| Breaking capacity [Icu] | 7.5 kA Icu at 380 V AC 50/60 Hz conforming to IEC 60947-2 7.5 kA Icu at 400...415 V AC 50/60 Hz conforming to IEC 60947-2 |
|
| [Ics] rated service breaking capacity | 1.875 kA at 380 V AC 50/60 Hz conforming to IEC 60947-2 1.875 kA at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 |
|
| Mechanical durability | 8500 cycles | |
| Electrical durability | Category A: 1500 cycles 415 V AC 50/60 Hz conforming to IEC 60947-2 | |
| Protection type | Overload protection Short-circuit protection |
|
| Dimensions (mm) (H x W x D) |
130x75x60mm | |
| Net weight (Kg) | 0.78Kg | |
| Door cut-out (small) Dimensions (X*Y) |
52x24mm | |
| Door cut-out (large) (X*Y) | 52x72mm | |
