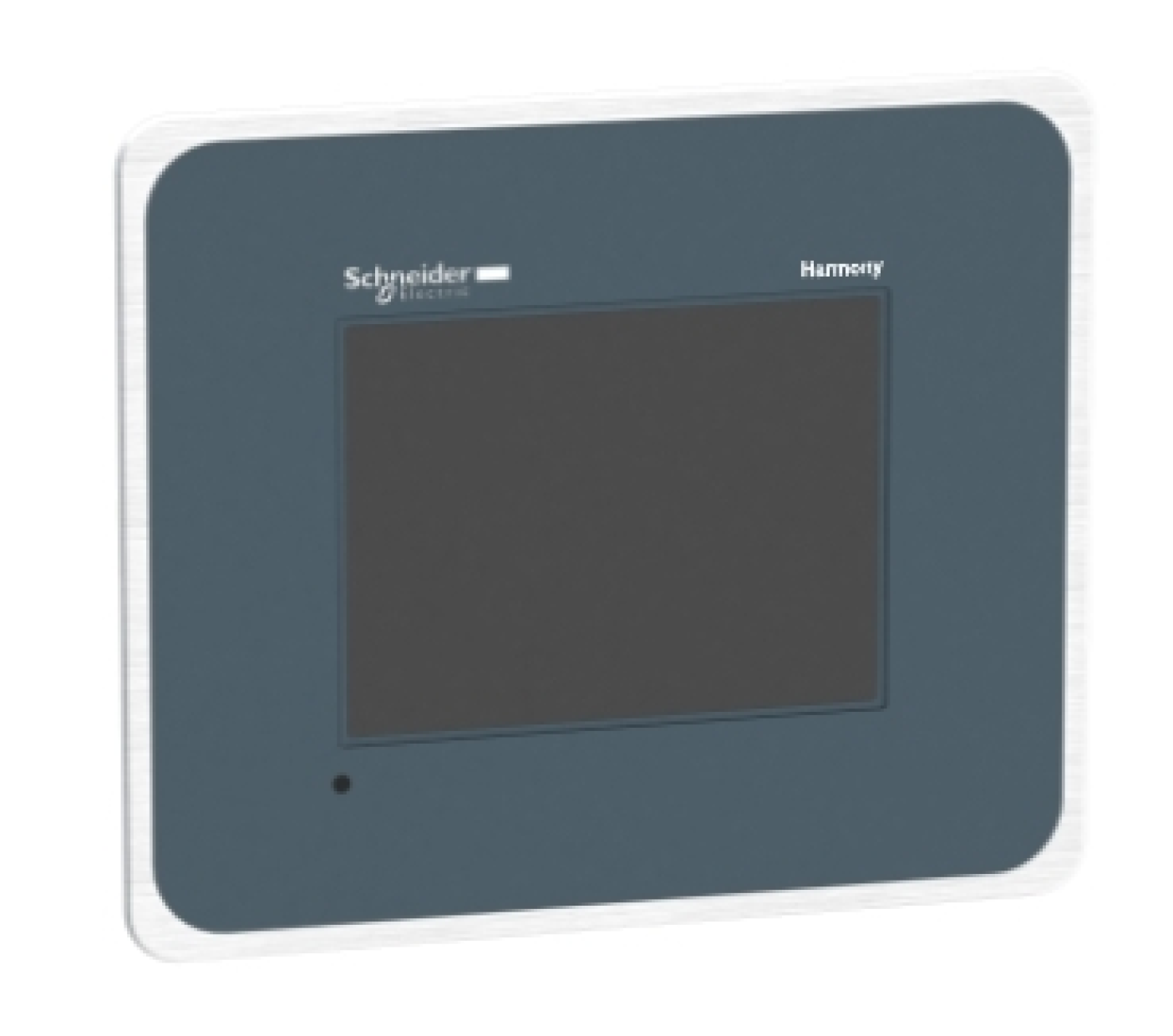

Advanced touchscreen panel stainless 320 x 240 pixels QVGA- 5.7" TFT - 96 MB.
Specifications |
HMIGTO2315 |
| Range of product | Harmony GTO |
| Country of Origin (Estimated) | Indonesia |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| product or component type | Advanced touchscreen panel |
| Display colour | 65536 colours |
| Display size | 5.7 inch |
| Supply | External source |
| Operating system | Harmony |
| Battery type | Lithium battery for internal RAM, autonomy: 100 days, charging time = 5 day(s), battery life = 10 year(s) |
| Terminal type | Touchscreen display |
| Display type | Backlit colour TFT LCD |
| Display resolution | 320 x 240 pixels QVGA |
| Touch sensitive zone | 1024 x 1024 |
| Touch panel | Resistive film, 1000000 cycles |
| Backlight lifespan | 50000 hours white at 25 °C |
| Brightness | 16 levels - control by touch panel 16 levels - control by software |
| Character font | Taiwanese (traditional Chinese) Japanese (ANK, Kanji) Chinese (simplified Chinese) ASCII Korean |
| [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 19.2…28.8 V |
| Inrush current | 30 A |
| Software designation | Vijeo Designer configuration software >= V6.1 |
| Memory description | Flash EPROM, 96 MB |
| Data backed up | 512 KB internal RAM (SRAM) |
| Data storage equipment | SD card, <= 32 GB SDHC card, <= 32 GB |
| Downloadable protocols | Schneider Electric Modicon Modbus Schneider Electric Modicon Uni-TE Schneider Electric Modicon Modbus Plus Schneider Electric Modicon FIPWAY Mitsubishi Melsec third party protocols Omron Sysmac third party protocols Rockwell Automation Allen-Bradley third party protocols Siemens Simatic third party protocols Schneider Electric Modicon Modbus TCP |
| Integrated connection type | COM1 serial link SUB-D 9, interface: RS232C, transmission rate: 2400...115200 bps COM2 serial link RJ45, interface: RS485, transmission rate: 2400...115200 bps COM2 serial link RJ45, interface: RS485, transmission rate: 187.5 kbps compatible with Siemens MPI Ethernet RJ45, interface: 10BASE-T/100BASE-TX Ethernet RJ45, interface: IEEE 802.3 USB 2.0 type A USB 2.0 type mini B |
| Product mounting | Flush mounting |
| Fixing mode | By 8 nuts By 4 L brackets |
| Front material | Stainless steel 304 |
| Type of cooling | Natural convection |
| Dimensions (HxWxD) | 181x213.5x59.5 mm |
| Net weight | 1.2 Kg |
