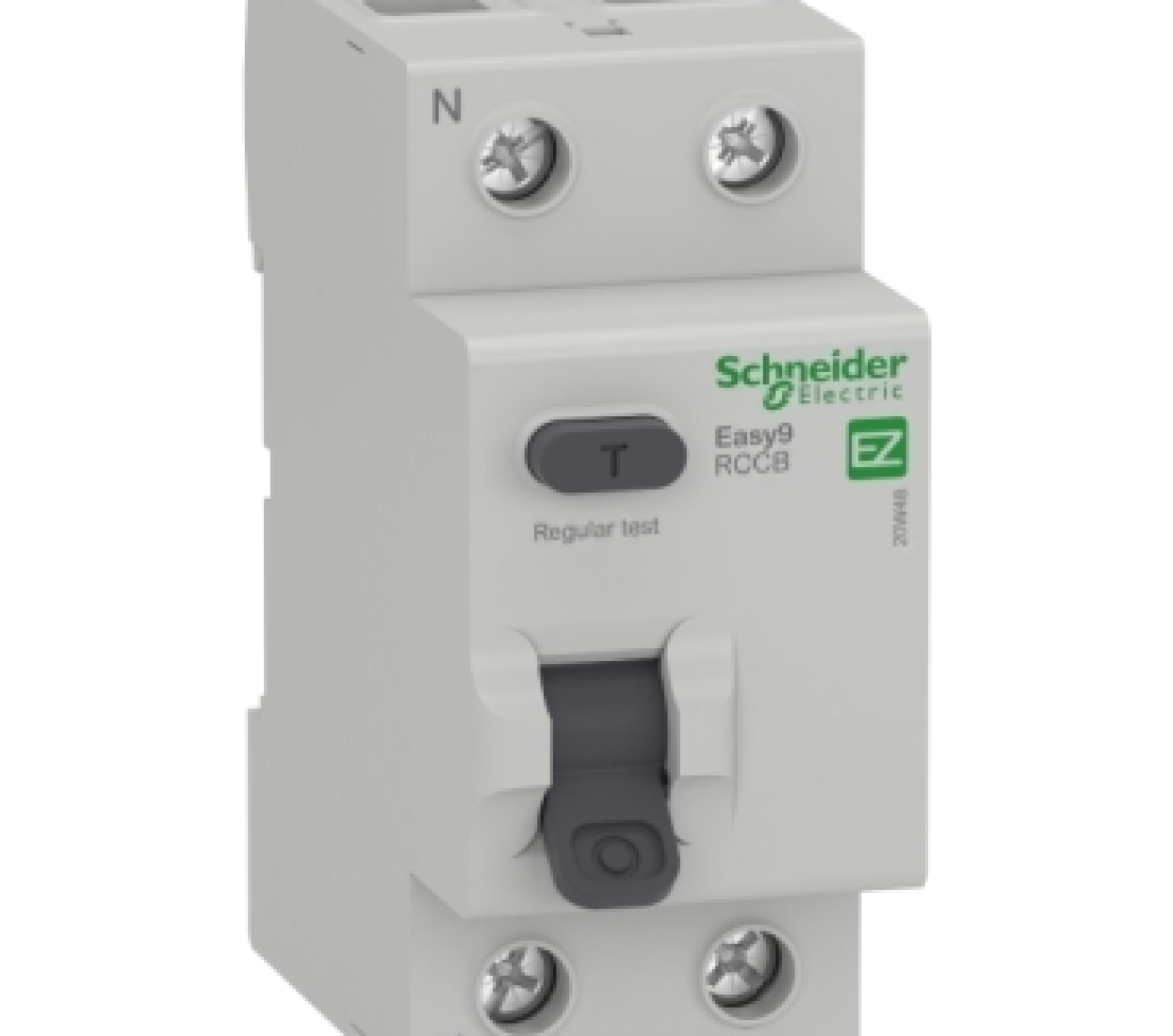

Easy9 Residual Current CirCuit Breaker - 2P - 25 A - 30 mA - AC type - 230 V.
Specifications |
EZ9R36225 |
| Range Of Product | Easy9 |
| Country of Origin (Estimated) | India (other) |
| Warranty | 12 months |
| CO/CQ | Yes (if need) |
| Product Or Component Type | Residual current circuit breaker (RCCB) |
| Device Short Name | Easy9 RCCB |
| Number of Poles | 2P |
| [In] rated current | 25 A |
| Neutral Position | Left |
| Network Type | AC |
| Tripping Characteristic | C |
| Earth-Leakage Sensitivity | 30mA |
| Earth-Leakage Protection Time Delay | Instantaneous |
| Earth-Leakage Protection Class | Type AC |
| Rated Breaking And Making Capacity | 500 A |
| [Ue] Rated Operational Voltage | 230 V AC 50/60 Hz |
| [Ui] Rated Insulation Voltage | 440 V AC |
| Control Type | Toggle |
| Mounting Mode | Clip-on |
| Mounting Support | DIN rail |
| Mechanical Durability | 5000 cycles |
| Connections - Terminals | Tunnel type terminal (top or bottom) 1…35 mm² rigid Tunnel type terminal (top or bottom) 1…25 mm² flexible |
| Tightening Torque | 3.5 N.m top or bottom |
| Standards | IEC 61008-1 |
| Dimensions (mm) (H x W x D) |
82 x 36 x 75 mm |
