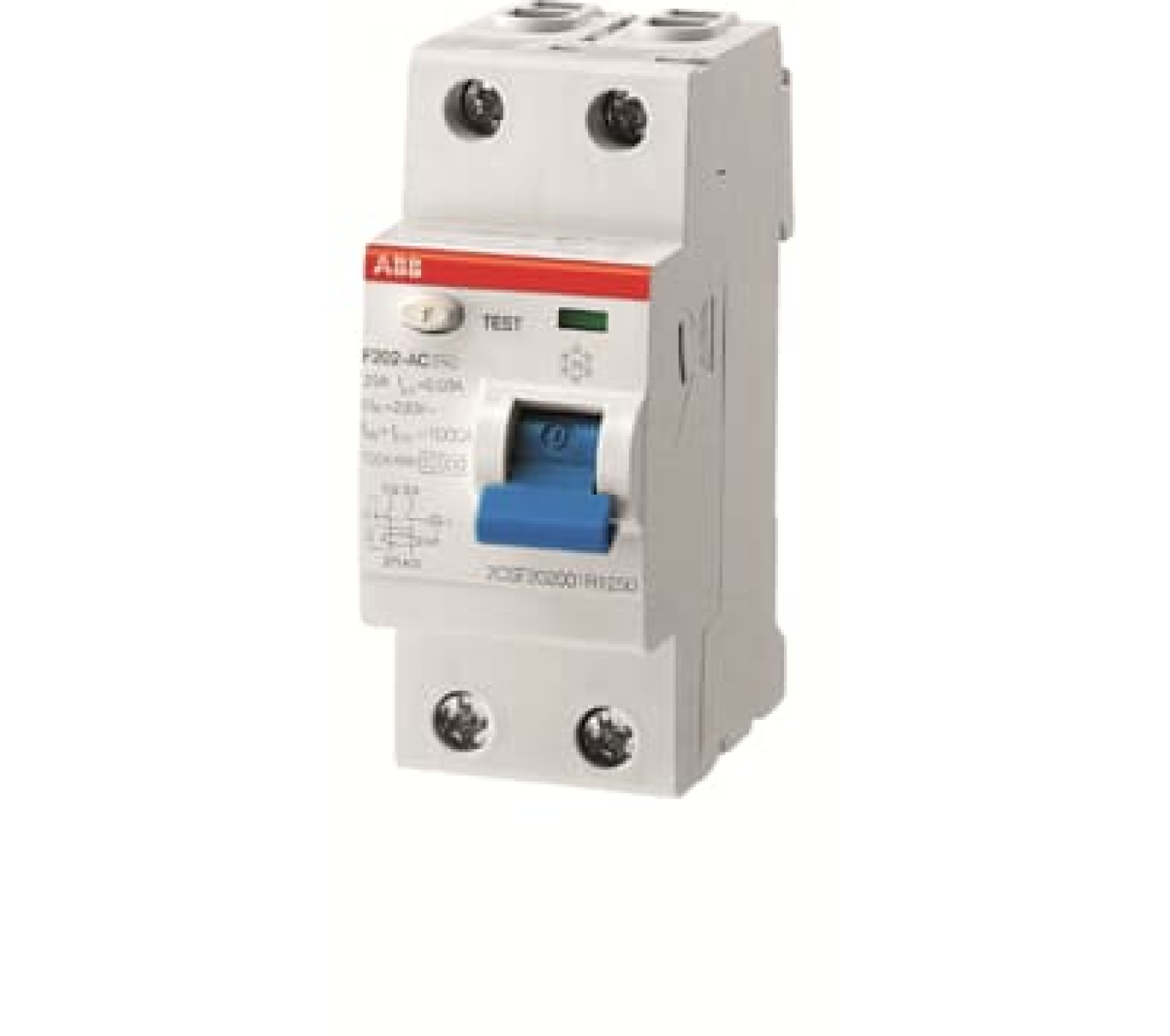

F202 AC-100/0.03 Residual Current Circuit Breaker 2P 100A Type AC 30 mA.
Specifications |
2CSF202005R1900 |
| Extended Product Type | F202 AC-100/0.03 IEC |
| Range | Residual Current Circuit Breaker F200 |
| Country of Origin (Estimated) | Italy (other) |
| Warranty | 12 months |
| CO/CQ | Yes (if need) |
| Product name & Device short name | The RCCBs F200 |
| Device application | Distribution |
| Number of Poles | 2P |
| [In] rated current | 100 A |
| Type of Residual Current | Type AC |
| Input Voltage Type | AC |
| Rated Residual Current | 30mA |
| Standards | IEC 61008 |
| Rated Operational Voltage | 230 V |
| Rated Insulation Voltage (Ui) | 500V |
| Leakage Current Type | AC |
| Operating Characteristic | Instantaneous |
| Mounting Type | DIN-Rail |
| Rated Cross-Section |
4 - Multi-Wired 10...25 mm² |
| Dimensions (mm) (H x W x D) |
69 x 35 x85 mm |
| Net Weight | 200 g |
