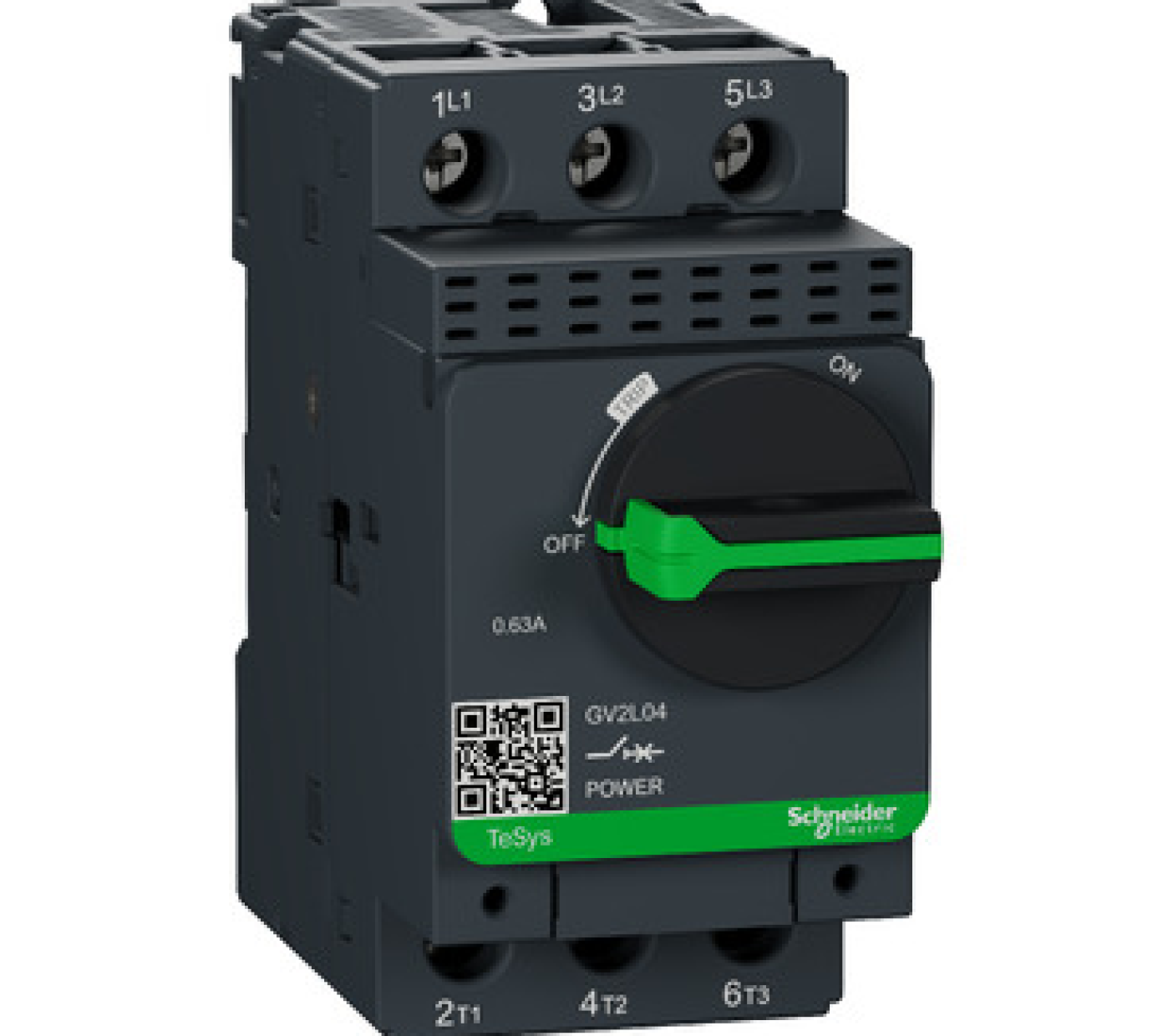

Motor circuit breaker,TeSys Deca frame 2, 3P, 0.63A,magnetic,rotary handle,screw clamp terminals.
| Specifications | ||
| Range | TeSys GV2 TeSys Deca |
|
| Country of Origin (Estimated) | Thailand (Other) | |
| Warranty | 12 months | |
| CO/CQ | Yes (if) | |
| Product name & Device short name | GV2L | |
| Device application | Motor protection | |
| Poles description | 3P | |
| Motor power kW | 0.12 kW at 400/415 V AC 50/60 Hz 0.18 kW at 400/415 V AC 50/60 Hz 0.37 kW at 690 V AC 50/60 Hz |
|
| Breaking capacity | 100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 100 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 |
|
| [Ics] rated service short-circuit breaking capacity | 100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2 |
|
| Control type | Rotary handle | |
| [In] rated current | 0.63 A | |
| Magnetic tripping current | 8A | |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 | |
| Dimensions (mm) (WxHxD) |
45x89x97 mm | |
| Net weight (Kg) | 0.33 Kg | |
