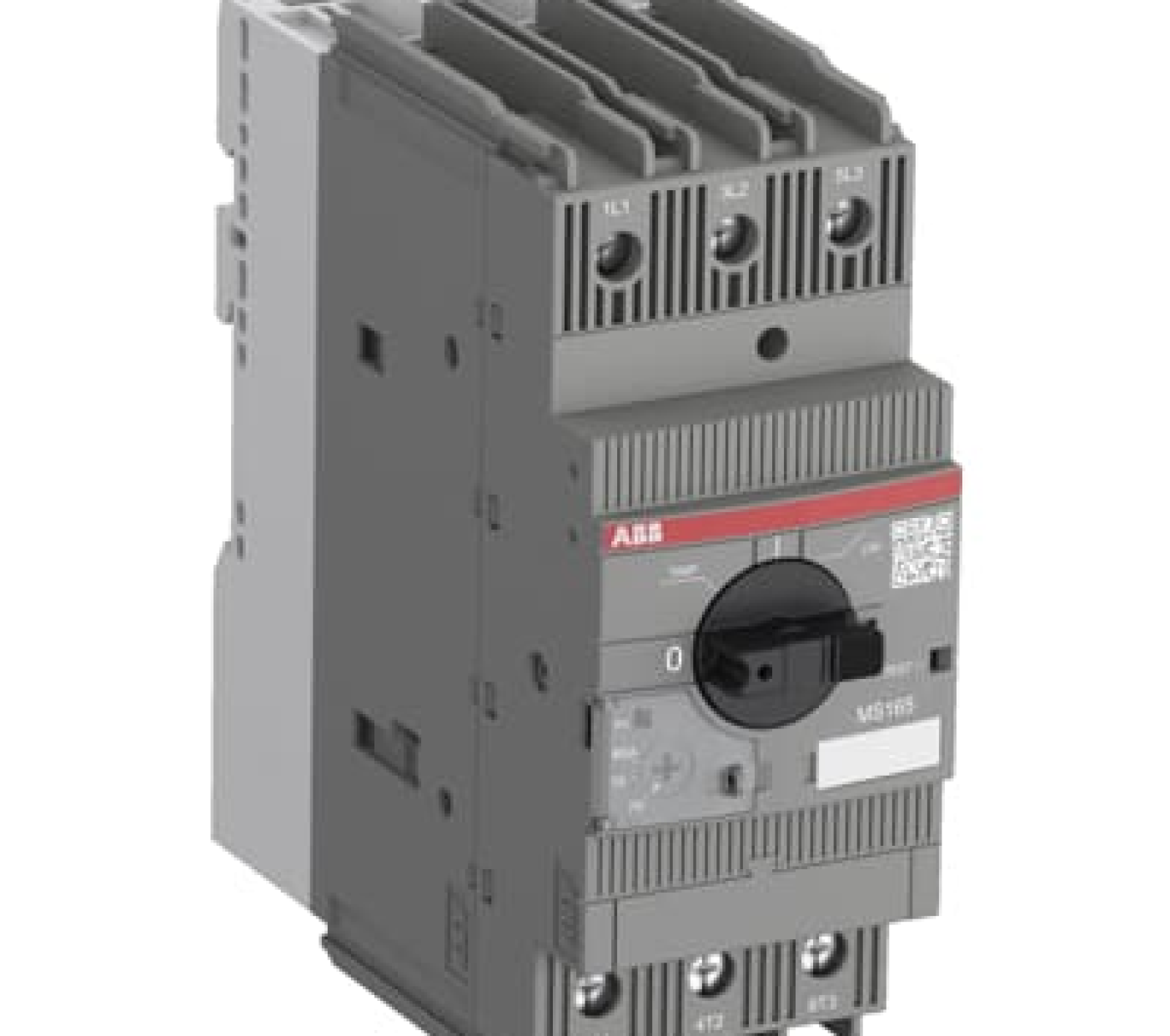

CB Bảo Vệ Động Cơ ABB MS165-42 (30-42A)

Mã sản phẩm: 1SAM451000R1015

Giá bán:

Liên hệ

Liên hệ hỗ trợ 24/7

Đổi trả và bảo hành

MS165 Manual Motor Starters With Thermal And Elecctromagnetic Protection 3P 22kW 30-42A (MS165-42).

Specifications	1SAM451000R1015
Range	Manual Motor Starter
Country of Origin (Estimated)	China (Other)
Warranty	12 months
CO/CQ	Yes (if)
Extended Product Type	MS165-42
Number of Poles	3P
Setting Range	30 ... 42 A
Full Load Amps Motor Use	(200 V AC) Three Phase 32.2 A (208 V AC) Three Phase 30.8 A (220 ... 240 V AC) Three Phase 42 A (440 ... 480 V AC) Three Phase 40 A (550 ... 600 V AC) Three Phase 41 A
Rated Service Short-Circuit Breaking Capacity (Ics)	(230 V AC) 100 kA (250 V DC) 3 Poles in Series 100 kA (400 V AC) 100 kA (440 V AC) 75 kA (500 V AC) 40 kA (690 V AC) 10 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)	(230 V AC) 100 kA (250 V DC) 100 kA (400 V AC) 100 kA (440 V AC) 75 kA (500 V AC) 40 kA (690 V AC) 10 kA
Rated Operational Power AC-3 (Pe)	(400 V) Three Phase 22 kW
Rated Operational Voltage	Main Circuit 690 V AC
Rated Operational Current (Ie)	42 A
Rated Insulation Voltage (Ui)	690 V
Electrical Durability	25000 cycle
Mechanical Durability	50000 cycle
Terminal Type	Screw Terminals
Actuator Type	Rotary Handle
Contact Position Indication	ON / OFF / TRIP
Standards	CSA 22.2 No. 14 IEC/EN 60947-1 IEC/EN 60947-2 IEC/EN 60947-4-1 UL 60947-4-1
Dimensions (mm) (HxWxD)	142.65 x 55 x 122.1 mm
Net weight (Kg)	0.97 kg
