Specifications
|

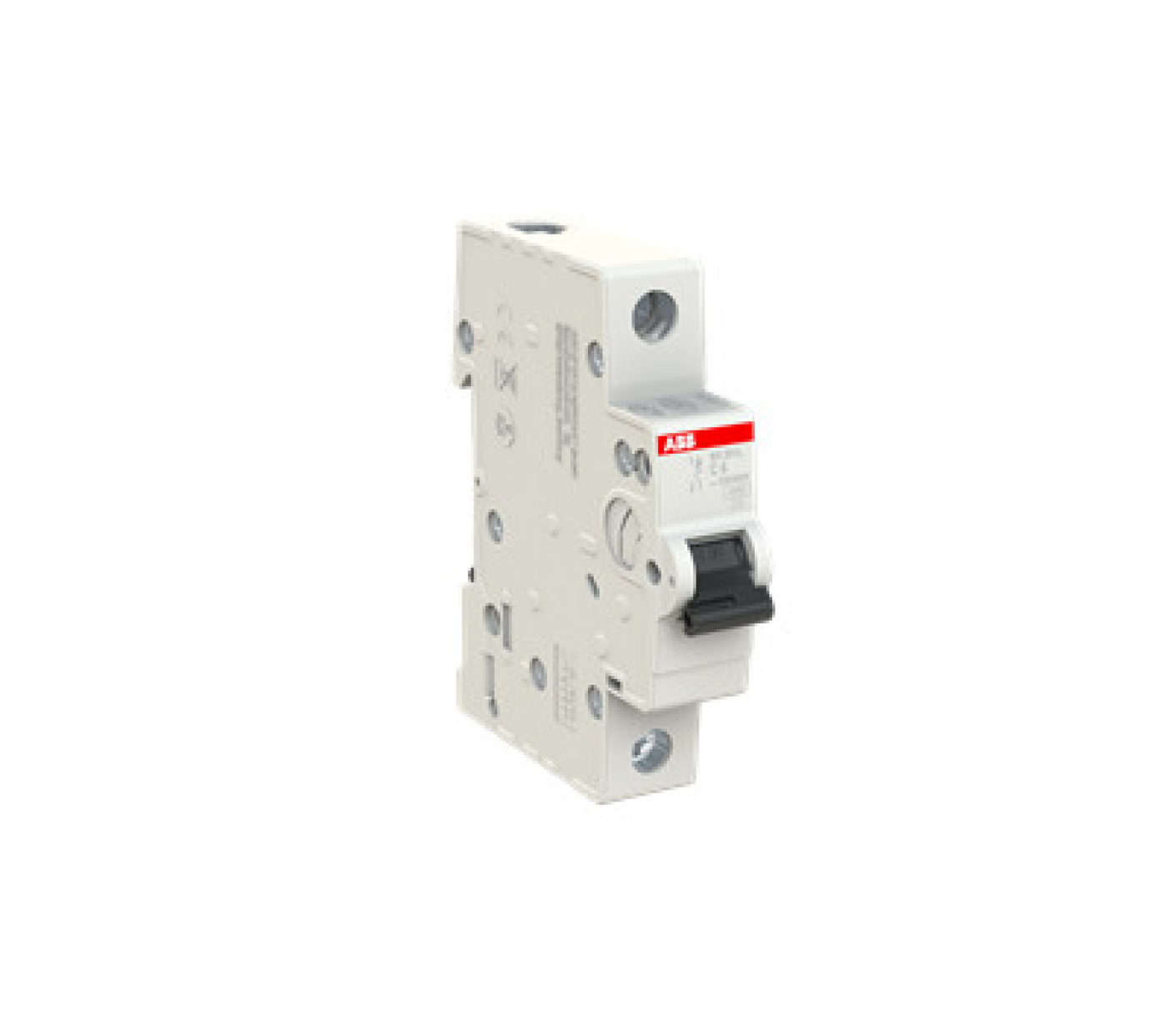

2CDS241001R0064
|
| Extended Product Type |
SH201L-C6 |
| Range |
Miniature Circuit Breakers SH200L |
| Country of Origin (Estimated) |
China (other) |
| Warranty |
12 months |
| CO/CQ |
Yes (if need) |
| Product name & Device short name |
MCB Compact Home SH200L |
| Device application |
Distribution |
| Number of Poles |
1P |
| [In] rated current |
6A |
| Trip unit technology |
Thermal-magnetic |
| Input Voltage Type |
AC |
| Tripping Characteristic |
C |
| Rated Short-Circuit Capacity |
(AC) 4.5 kA
(230 / 400 V AC) 4.5 kA
(230 V) 4.5 kA |
| Rated Conditional Short-Circuit Current (Inc) |
(230 V) 5 kA
(400 V) 5 kA |
| Standards |
IEC/EN 60898-1 |
| [Ue] rated operational voltage |
acc. to IEC 60898-1 230 V |
| [Ui] rated insulation voltage |
acc. to IEC/EN 60664-1 440 V |
| Contact Position Indication |
ON / OFF |
| Electrical Endurance |
20000 AC cycle |
| Mechanical Endurance |
20000 cycle |
| Actuator Type |
Toggle |
| Actuator Marking |
I / O |
| Mounting on DIN Rail |
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Connecting Capacity |
Conductor 25 / 25 mm²
Flexible with Ferrule 0.75 ... 16 mm²
Flexible 0.75 ... 16 mm²
Rigid 0.75 ... 25 mm²
Stranded 0.75 ... 25 mm² |
Dimensions (mm)
(H x W x D) |
85 x 17.5 x 69 mm |
| Net Weight |
0.125 kg |
