Specifications |

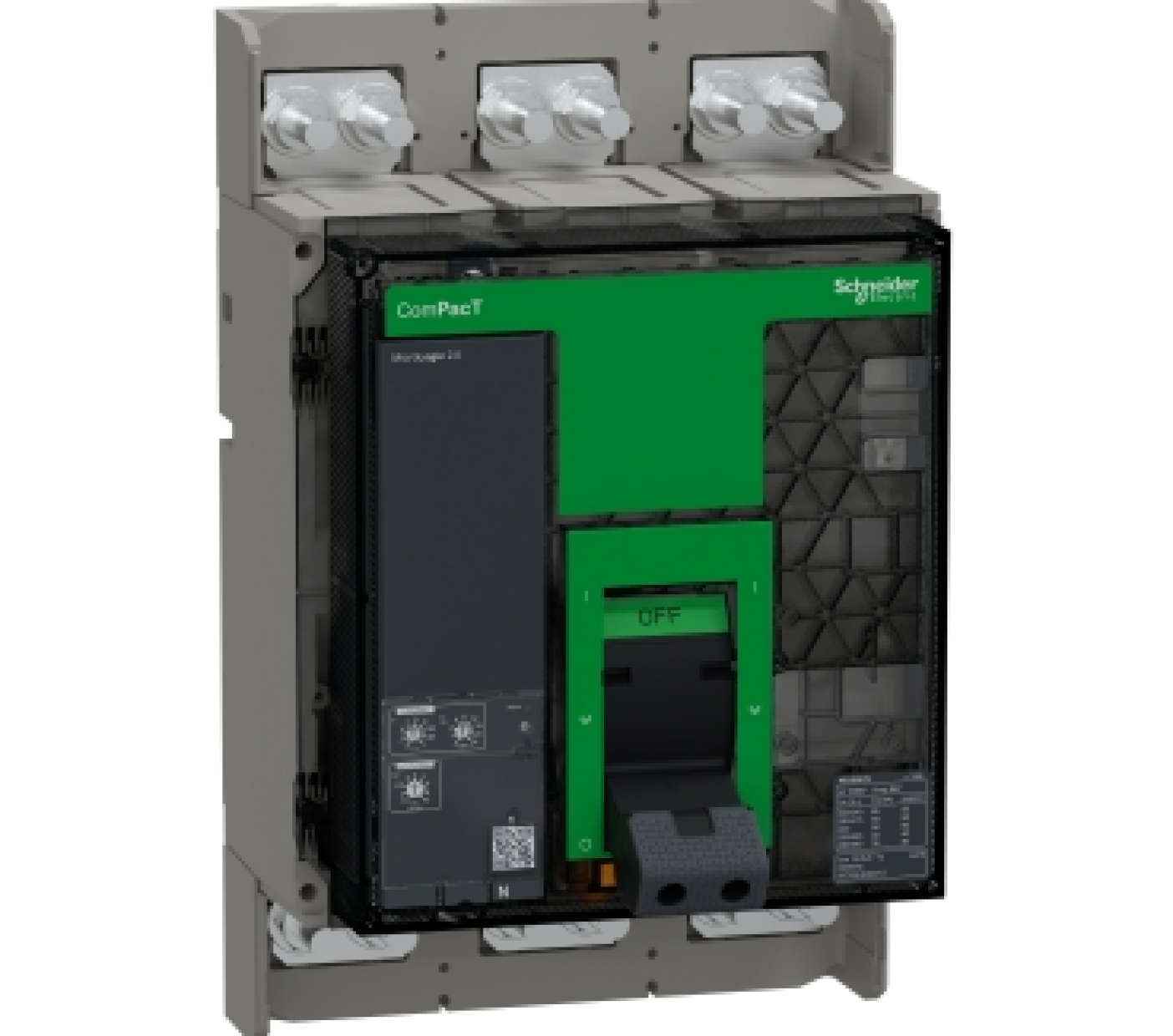

C100N320FM |
|
| Range | ComPacT NS (Seri mới) | |
| Country of Origin (Estimated) | China | |
| Warranty | 12 months | |
| CO/CQ | Yes (if) | |
| Range of product | ComPacT NS630b...1600 new generation | |
| Device application | Distribution | |
| Poles description | 3P | |
| Protected poles description | 3D | |
| (In) rated current up to 65 °C | 1000 A at 50 °C | |
| Network type | AC | |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz | |
| Suitability for isolation | Yes conforming to EN/IEC 60947-2 | |
| Trip unit name | MicroLogic 2.0 A | |
| Trip unit technology | Electronic | |
| Trip unit protection functions | LI | |
| Protection type | L : for overload protection (long time) I : for instantaneous short-circuit protection |
|
| Long-time pick-up adjustment type Ir (thermal protection) | Adjustable 9 settings | |
| Trip unit rating | 1000 A | |
| [Ir] long-time protection pick-up adjustment range | 0.4...1 x In | |
| Control type | Manually operated | |
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz conforming to IEC 60947-2 | |
| Connection pitch | 70 mm | |
| Breaking capacity [Icu] | 50 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 | |
| [Ics] rated service breaking capacity | 50 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 | |
| Mechanical durability | 10000 cycles | |
| Auxiliary contact composition | 1 NO/NC | |
| Electrical durability | 2000 cycles at 690 V In 4000 cycles at 690 V In/2 5000 cycles at 440 V In 6000 cycles at 440 V In/2 |
|
| Dimensions (mm) (HxWxD) |
3P /327x210x147 mm | |
| Net weight (Kg) | 3P/14Kg | |
| Door cutout Dimensions (XxY) | 3P/194x216 mm | |
