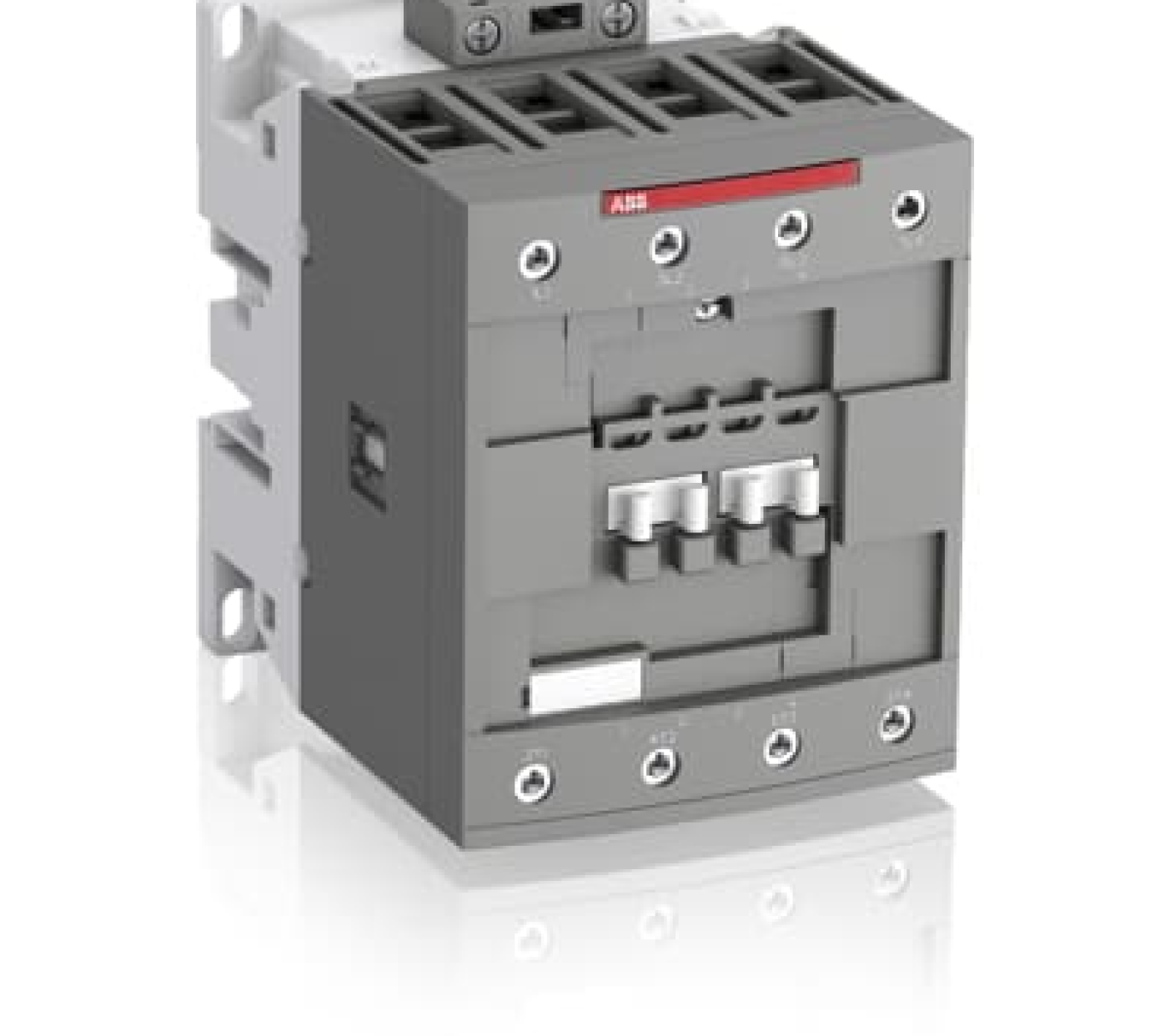

Contactor 3-phase 80A Control Circuit Voltage 250-500VAC/DC (AF80-30-00-14)
Specifications |
1SBL397001R1400 |
| Range | Contactor AF |
| Country of Origin (Estimated) | China (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Extended Product Type | AF80-30-00-14 |
| Device application | Power switching Motor control |
| Number of Main Contacts NO | 3P |
| Number of Auxiliary Contacts | 0 |
| Rated Operational Voltage | Main Circuit 1000 V |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-1:22, CSA C22.2 No. 60947-4-1:22 |
| Conventional Free-air Thermal Current | acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 130 A |
| Rated Operational Current AC-1 (Ie) | (690 V) 40 °C 125 A (690 V) 60 °C 100 A (690 V) 70 °C 85 A |
| Rated Operational Current AC-3 | (415 V) 60 °C 80 A (440 V) 60 °C 80 A (500 V) 60 °C 65 A (690 V) 60 °C 49 A (1000 V) 60 °C 25 A (380 / 400 V) 60 °C 80 A (220 / 230 / 240 V) 60 °C 80 A |
| Rated Operational Power AC-3 (Pe) | (400 V) 37 kW (415 V) 45 kW (440 V) 45 kW (500 V) 45 kW (690 V) 45 kW (1000 V) 35 kW (380 / 400 V) 37 kW (220 / 230 / 240 V) 22 kW |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-4-1 1000 V acc. to UL/CSA 600 V |
| Rated Control Circuit Voltage (Uc) |
50 Hz 250 ... 500 V |
| Maximum Mechanical Switching Frequency |
3600 cycles per hour |
| Screw Terminal Type |
Screw Terminals |
| Dimensions (mm) (HxWxD) |
125.5 x 70 x 116 mm |
| Net weight (Kg) | 1.17 kg |
