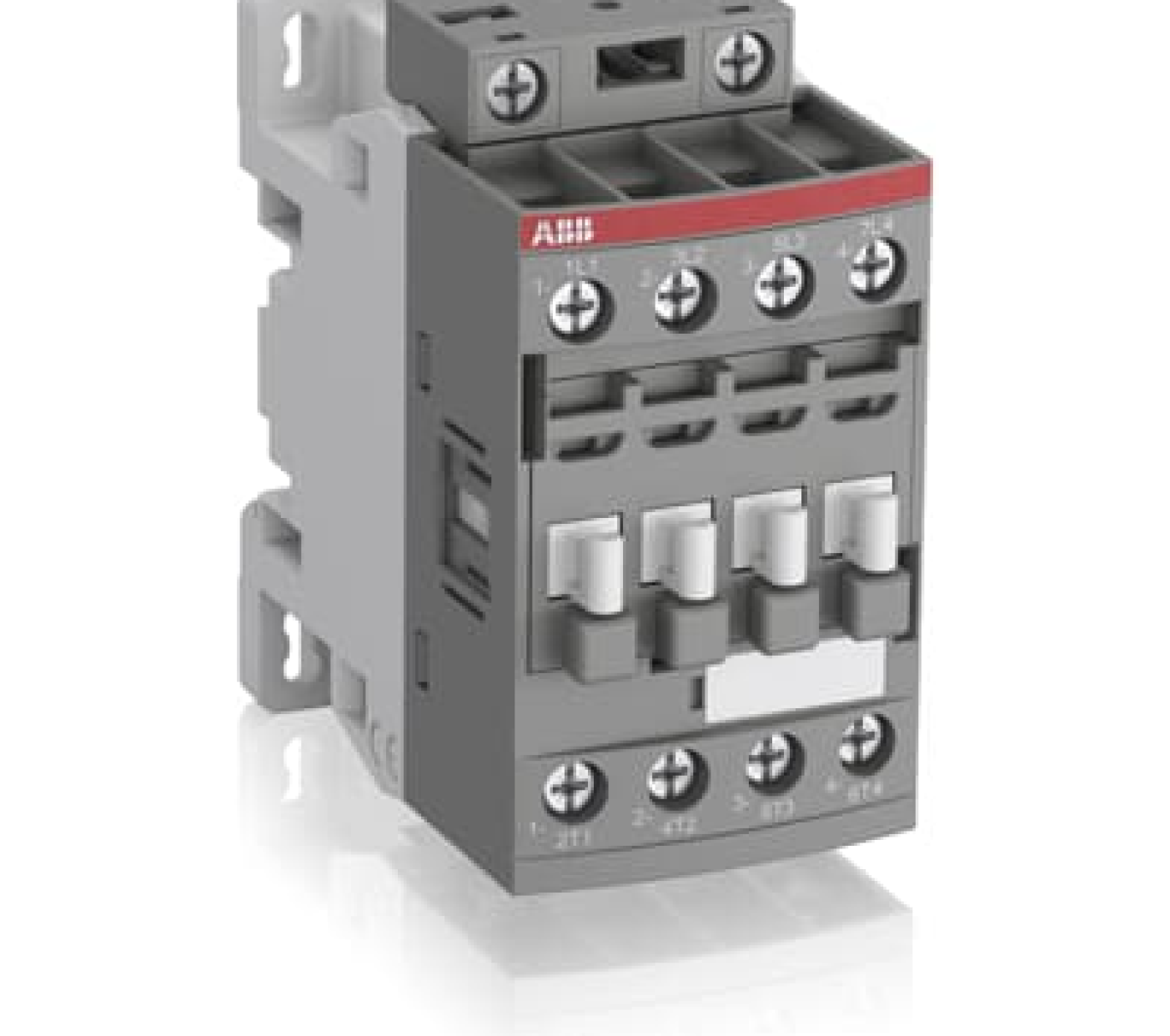

Contactor 3-phase 4 Pole 4NO 30A Control Circuit Voltage 100-250VAC/DC (AF16-40-00-13)
Specifications |
1SBL177201R1300 |
| Range | Contactor AF |
| Country of Origin (Estimated) | China (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Extended Product Type | AF16-40-00-13 |
| Device application | Power switching Motor control |
| Number of Main Contacts NO | 4P |
| Number of Auxiliary Contacts | 0 |
| Rated Operational Voltage | Main Circuit 690 V |
| Conventional Free-air Thermal Current | acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 35 A |
| Rated Operational Current AC-1 (Ie) | (690 V) 40 °C 30 A (690 V) 60 °C 30 A (690 V) 70 °C 26 A |
| Rated Operational Current AC-3 (Ie) | (415 V) 60 °C 18 A (440 V) 60 °C 18 A (500 V) 60 °C 15 A (690 V) 60 °C 10.5 A (380 / 400 V) 60 °C 18 A (220 / 230 / 240 V) 60 °C 18 A |
| Rated Operational Power AC-3 (Pe) | (400 V) 7.5 kW (415 V) 9 kW (440 V) 9 kW (500 V) 9 kW (690 V) 9 kW (380 / 400 V) 7.5 kW (220 / 230 / 240 V) 4 kW |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-4-1 690 V acc. to UL/CSA 600 V |
| Rated Control Circuit Voltage (Uc) |
50 Hz 100 ... 250 V |
| Maximum Mechanical Switching Frequency | 3600 cycles per hour |
| Terminal Type | Screw Terminals |
| Dimensions (mm) (HxWxD) |
86 x 45 x 77 mm |
| Net weight (Kg) | 0.27 kg |
