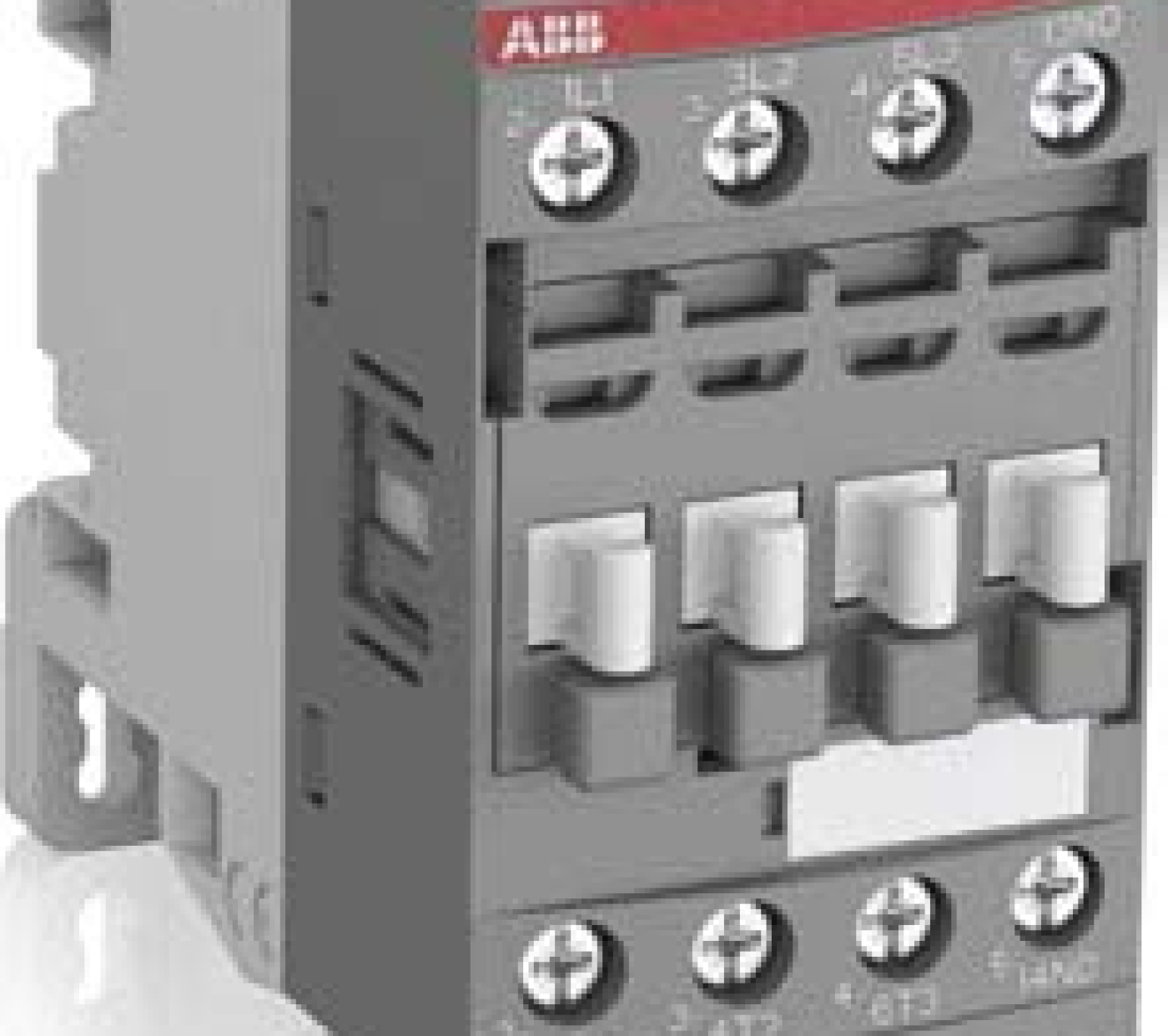

Contactor 3-phase 9A Auxiliary Contacts 1NC Control Circuit Voltage 24-60VAC (AF09-30-01-41).
Specifications |
1SBL137001R4101 |
| Range | Contactor AF |
| Country of Origin (Estimated) | France (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Extended Product Type | AF09-30-01-41 |
| Device application | Power switching Motor control |
| Poles description | 3P |
| Number of Auxiliary Contacts | 1NC |
| Rated Operational Voltage | Auxiliary Circuit 690 V Main Circuit 690 V |
| Standards | IEC 60947-1 / 60947-4-1 and EN 60947-1 / 60947-4-1, UL 508, CSA C22.2 N°14 |
| Conventional Free-air Thermal Current | acc. to IEC 60947-5-1, q = 40 °C 16 A acc. to IEC 60947-4-1, Open Contactors q = 40 °C 35 A |
| Rated Operational Current AC-1 (Ie) | (690 V) 40 °C 25 A (690 V) 60 °C 25 A (690 V) 70 °C 22 A |
| Rated Operational Current AC-3 | (220 / 230 / 240 V) 60 °C 9 A (380 / 400 V) 60 °C 9 A (415 V) 60 °C 9 A (440 V) 60 °C 9 A (500 V) 60 °C 9.5 A (690 V) 60 °C 7 A |
| Rated Operational Power AC-3 (Pe) | (220 / 230 / 240 V) 2.2 KWT (380 / 400 V) 4 KWT (415 V) 4 KWT (440 V) 4 KWT (500 V) 5.5 KWT (690 V) 5.5 KWT (400 V) 4 KWT |
| Rated Insulation Voltage (Ui) | acc. to UL/CSA 600 V acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 V |
| Rated Control Circuit Voltage (Uc) | 50 Hz /60 Hz 24 ... 60 V |
| Maximum Mechanical Switching Frequency | 3600 cycles per hour |
| Screw Terminal Type | Screw Terminals |
| Dimensions (mm) (HxWxD) |
86 x 45 x 77 mm |
| Net weight (Kg) | 0.27 kg |
