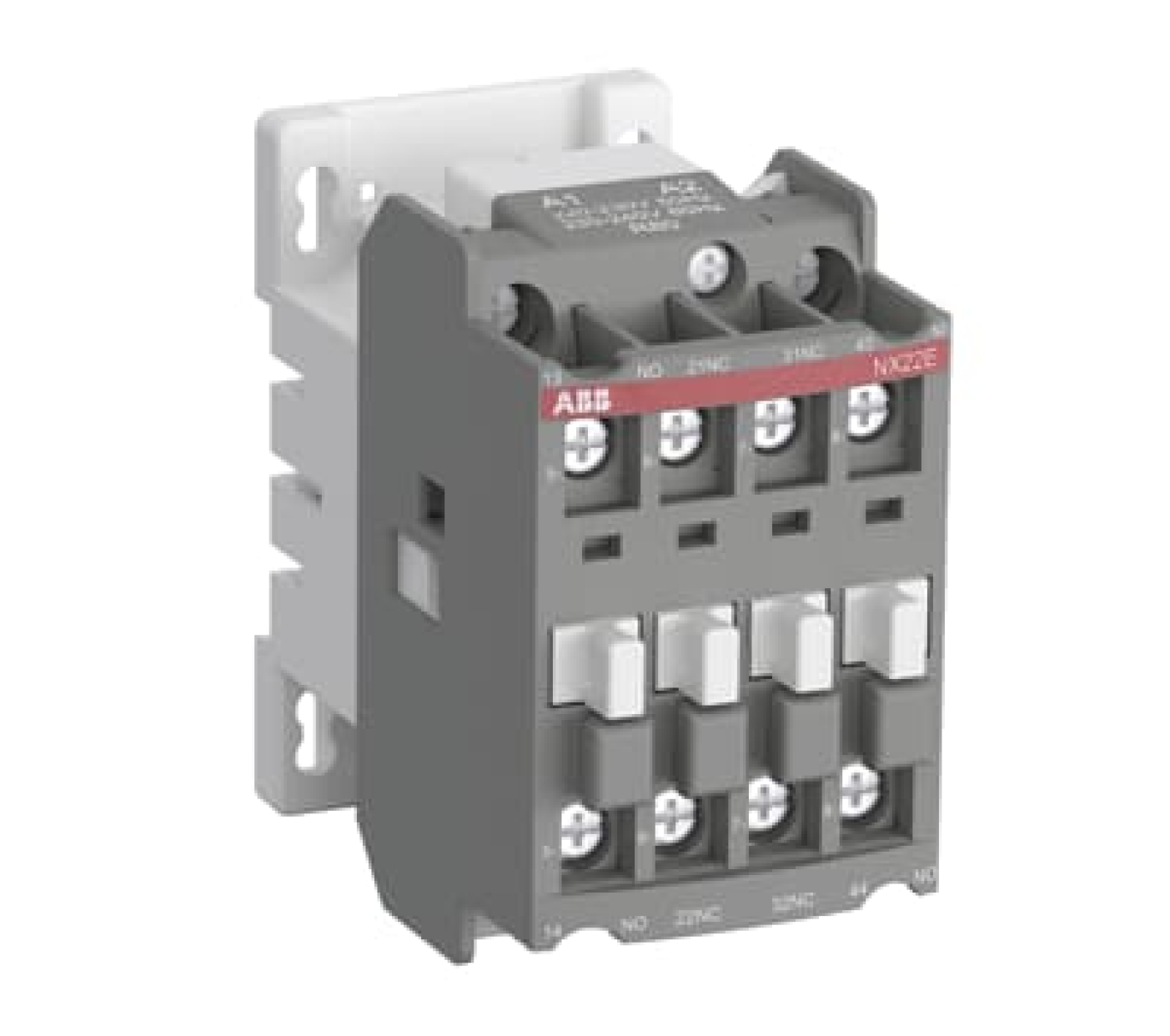

Contactor Relay 2NO+2NC Coil 220VAC (NX22E-80)
Specifications |
1SBH901074R8022 |
| Range | Contactor Relay |
| Country of Origin (Estimated) | China (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Extended Product Type | NX22E-80 |
| Number of Auxiliary Contacts NO | 2 |
| Number of Auxiliary Contacts NC | 2 |
| Rated Operational Voltage | Auxiliary Circuit 690 V Main Circuit 690 V |
| Conventional Free-air Thermal Current | acc. to IEC 60947-5-1, Θ = 40 °C 16 A |
| Rated Operational Current AC-1 (Ie) | (500 V) NC 2 (500 V) 2 A (690 V) 2 A (24 / 127 V) 6 A (220 / 240 V) 4 A (380 / 400 V) 3 A (400 / 440 V) 2 A |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V |
| Rated Control Circuit Voltage (Uc) |
50 Hz 220 ... 230 V |
| Maximum Mechanical Switching Frequency | 6000 cycles per hour |
| Terminal Type | Screw Terminals |
| Dimensions (mm) (HxWxD) |
74 x 44 x 74 mm |
| Net weight (Kg) | 0.315 kg |
